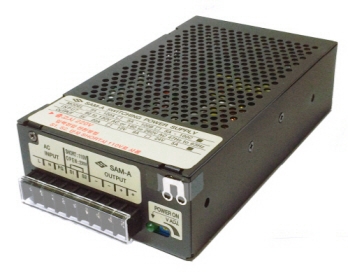

SA-100 SERIES

100Watts AC-DC Switching
Power Supplies
∙ Single Output
∙ High Quality Industrial Power
∙ Protection Circuit
∙ Dual Input Voltage Range
※ 표준사양 이외에 기타사양은 주문 제작함.
※ DIN-RAIL BRACKET 적용 가능

카달로그 다운로드

견적 · 주문제작 문의

MODEL INFORMATION

MODEL
(MODEL명을 눌러 상세정보 확인)		 OUTPUT SIZE(mm) WEIGHT(KG)
VOLTAGE(V) CURRENT(A) WATTS(W)
SA-100A 5 20.0 100 186(L)X106(W)X50(H) 0.76
SA-100B 12 9.0 100 186(L)X106(W)X50(H) 0.76
SA-100C 24 5.0 100 186(L)X106(W)X50(H) 0.76
SA-1506 15 6.6 100 186(L)X106(W)X50(H) 0.76
SA-0911 9 11.0 100 186(L)X106(W)X50(H) 0.76

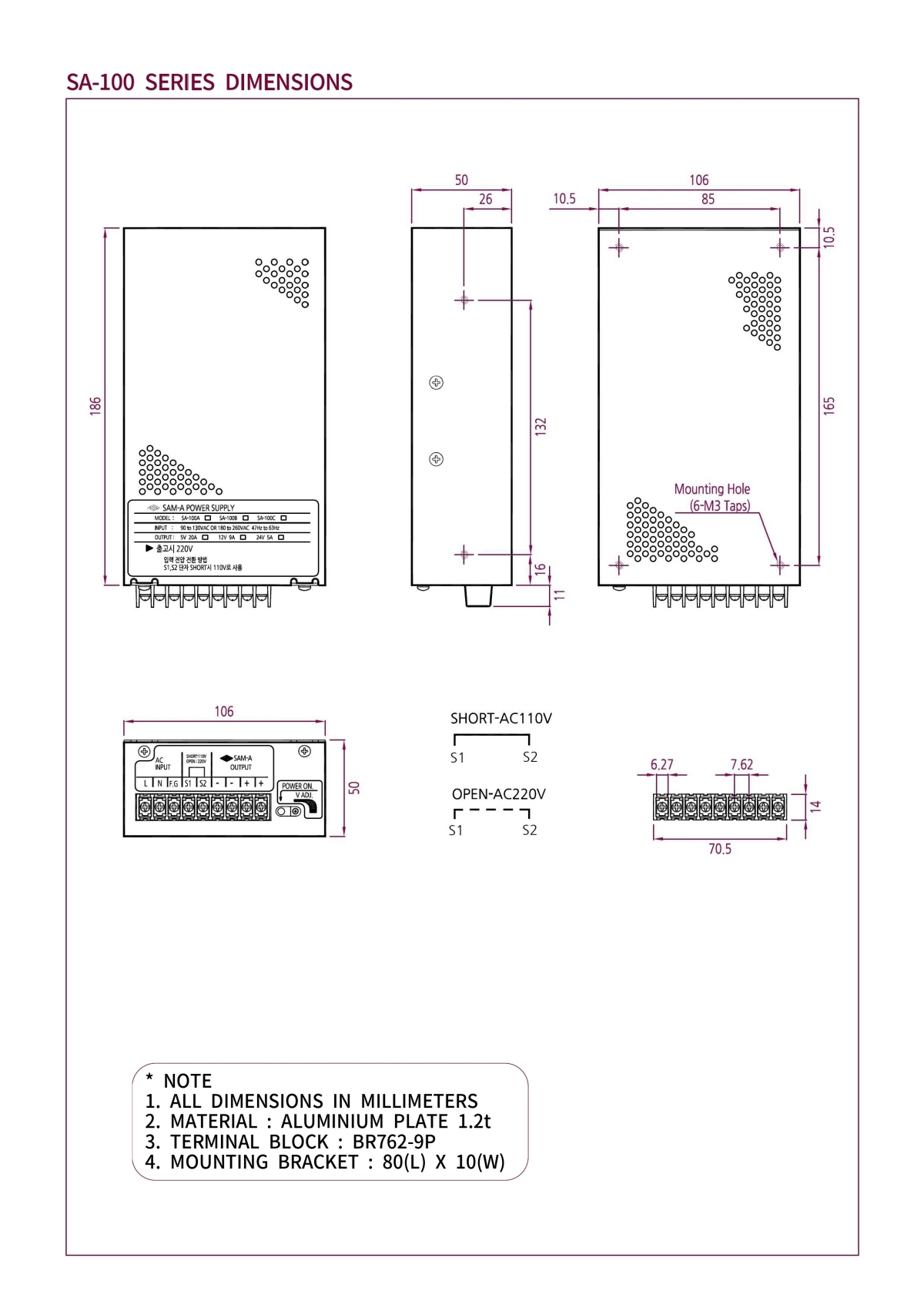

DRAWING(도면)
